Product Specifications

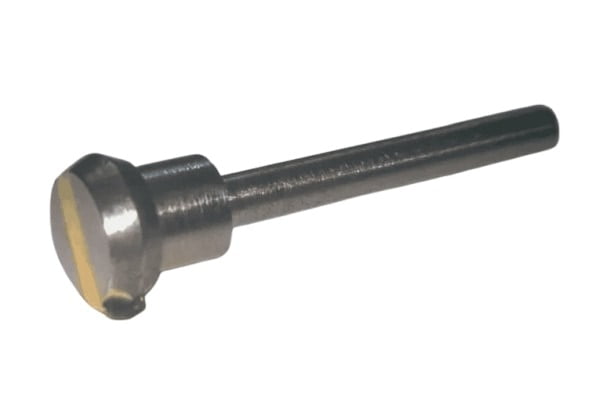

Flywheel Tools

Product Name	Features	Shank Size	Diamond size	Degrees	Dimension
US Diamond Flywheel Clockwise	Flat and V shape tools	2.35 mm, 3mm, 4mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180	9 to 11 mm head Size
US Diamond Flywheel Clockwise	Fancy tool	2.35 mm, 3mm, 4mm	0.5mm to 4mm	Concave, convex, lining	9 to 11 mm head Size
US Tungsten Carbide Flywheel Clockwise	Flat and V shape tools	2.35 mm, 3mm, 4mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180	9 to 11 mm head Size
US Tungsten Carbide Flywheel Clockwise	Fancy tool	2.35 mm, 3mm, 4mm	0.5mm to 4mm	Concave, convex, lining	9 to 11 mm head Size
US Diamond Flywheel Anti-Clockwise	Flat and V shape tools	2.35 mm, 3mm, 4mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180	9 to 11 mm head Size
US Diamond Flywheel Anti-Clockwise	Fancy tool	2.35 mm, 3mm, 4mm	0.5mm to 4mm	Concave, convex, lining	9 to 11 mm head Size
US Tungsten Carbide Flywheel Anti-Clockwise	Flat and V shape tools	2.35 mm, 3mm, 4mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180	9 to 11 mm head Size
US Tungsten Carbide Flywheel Anti-Clockwise	Fancy tool	2.35 mm, 3mm, 4mm	0.5mm to 4mm	Concave, convex, lining	9 to 11 mm head Size

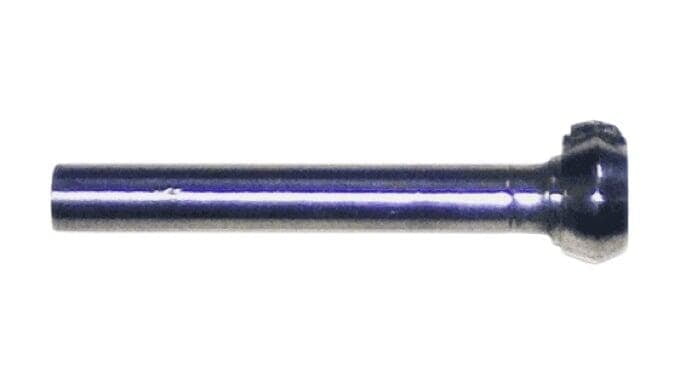

Flywheel Small Head

Product Name	Features	Shank Size	Diamond size	Degrees	Dimension
US Diamond Flywheel Small Head	Flat and V shape tools	2.35 mm, 3mm, 4mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180	6mm head size
US Diamond Flywheel Small Head	Fancy tool	2.35 mm, 3mm, 4mm	0.5mm to 4mm	Concave, convex, lining	6mm head size
US Tungsten Carbide Flywheel Small Head	Flat and V shape tools	2.35 mm, 3mm, 4mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180	6mm head size
US Tungsten Carbide Flywheel Small Head	Fancy tool	2.35 mm, 3mm, 4mm	0.5mm to 4mm	Concave, convex, lining	6mm head size

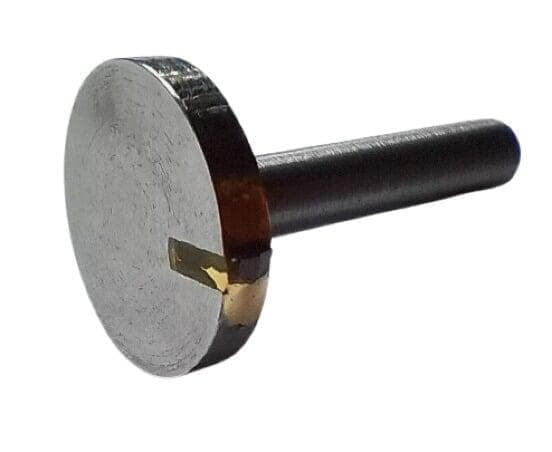

Disc Flywheel

Product Name	Features	Shank Size	Diamond size	Degrees
US Diamond Disc Flywheel Clockwise	Flat and V shape tools	6mm, wheel size 25mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180 or as per drawing
US Diamond Disc Flywheel Clockwise	Fancy tool	6mm, wheel size 25mm	0.5mm to 4mm	Concave, convex, lining or as per drawing
US Tungsten Disc Carbide Flywheel Clockwise	Flat and V shape tools	6mm, wheel size 25mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180 or as per drawing
US Tungsten Disc Carbide Flywheel Clockwise	Fancy tool	6mm, wheel size 25mm	0.5mm to 4mm	Concave, convex, lining or as per drawing
US Diamond Disc Flywheel Anti-Clockwise	Flat and V shape tools	6mm, wheel size 25mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180 or as per drawing
US Diamond Disc Flywheel Anti-Clockwise	Fancy tool	6mm, wheel size 25mm	0.5mm to 4mm	Concave, convex, lining or as per drawing
US Tungsten Carbide Disc Flywheel Anti-Clockwise	Flat and V shape tools	6mm, wheel size 25mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180 or as per drawing
US Tungsten Carbide Disc Flywheel Anti-Clockwise	Fancy tool	6mm, wheel size 25mm	0.5mm to 4mm	Concave, convex, lining or as per drawing

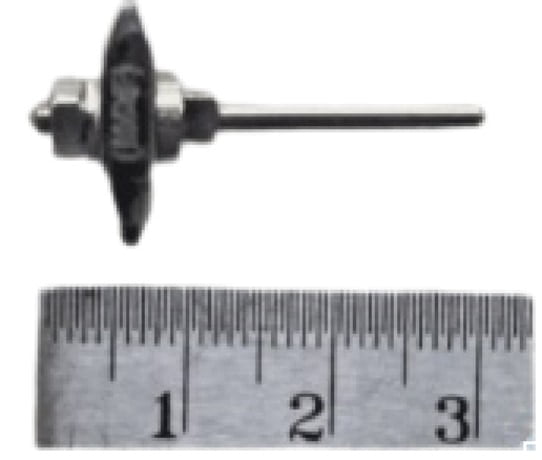

Reversible Hammer Tool

Product Name	Features	Shank Size	Diamond size	Degrees	Dimension
US Diamond Flywheel Reversible Hammer	Flat and V shape tools	2.35mm, 2.5mm, 3mm, 4mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180	16mm to 25mm head size
US Diamond Flywheel Reversible Hammer	Fancy tool	2.35mm, 2.5mm, 3mm, 4mm	0.5mm to 4mm	Concave, convex, lining	16mm to 25mm head size
US Tungsten Carbide Flywheel Reversible Hammer	Flat and V shape tools	2.35mm, 2.5mm, 3mm, 4mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180	16mm to 25mm head size
US Tungsten Carbide Flywheel Reversible Hammer	Fancy tool	2.35mm, 2.5mm, 3mm, 4mm	0.5mm to 4mm	Concave, convex, lining	16mm to 25mm head size

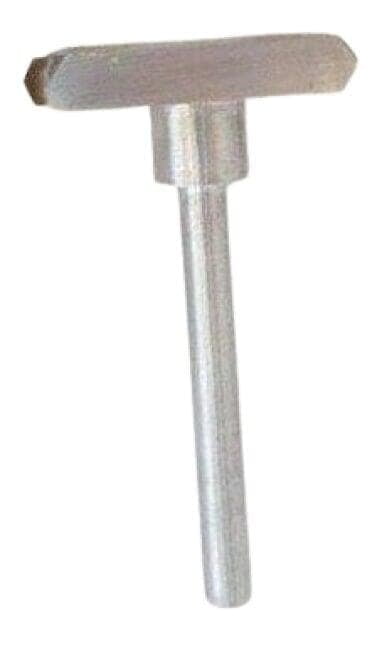

Fix Head Hammer Tool

Product Name	Features	Shank Size	Diamond size	Degrees	Dimension
US Diamond Flywheel Hammer Head Fix	Flat and V shape tools	2.35mm, 2.5mm, 3mm, 4mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180	16mm to 25mm head size
US Diamond Flywheel Hammer Head Fix	Fancy tool	2.35mm, 2.5mm, 3mm, 4mm	0.5mm to 4mm	Concave, convex, lining	16mm to 25mm head size
US Tungsten Carbide Flywheel Hammer Head Fix	Flat and V shape tools	2.35mm, 2.5mm, 3mm, 4mm	0.5mm to 4mm	90, 100,120,130,140,150,160,180	16mm to 25mm head size
US Tungsten Carbide Flywheel Hammer Head Fix	Fancy tool	2.35mm, 2.5mm, 3mm, 4mm	0.5mm to 4mm	Concave, convex, lining	16mm to 25mm head size

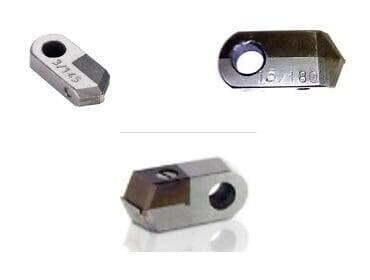

Posalux Tools

Product Name	Features	Shank Size	Diamond size	Degrees
Posalux Diamond Faceting Horizontal Tools	Flat and V shape tools	6mm X 12mm Length 26mm	0.5mm to10mm	90, 100, 110, 120, 130, 140,150, 160, 170 and flat
Posalux Diamond Faceting Horizontal Tools	Fancy tool	6mm X 12mm Length 26mm	1mm to 4mm	Concave, convex, lining and customized tools as per catalogue number
Posalux Diamond Faceting Vertical Tools	Flat and V shape tools	6mm X 12mm Length 26mm	0.5mm to10mm	90, 100, 110, 120, 130, 140,150, 160, 170 and flat
Posalux Diamond Faceting Vertical Tools	Fancy tool	6mm X 12mm Length 26mm	1mm to 4mm	Concave, convex, lining and customized tools as per catalogue number
Posalux Tungsten Carbide Faceting Horizontal Tools	Flat and V shape tools	6mm X 12mm Length 26mm	0.5mm to10mm	90, 100, 110, 120, 130, 140,150, 160, 170 and flat
Posalux Tungsten Carbide Faceting Horizontal Tools	Fancy tool	6mm X 12mm Length 26mm	1mm to 4mm	Concave, convex, lining and customized tools as per catalogue number
Posalux Tungsten Carbide Faceting Vertical Tools	Flat and V shape tools	6mm X 12mm Length 26mm	0.5mm to 5mm	90, 100, 110, 120, 130, 140,150, 160, 170 and flat
Posalux Tungsten Carbide Faceting Vertical Tools	Fancy tool	6mm X 12mm Length 26mm	0.5mm to 5mm	Concave, convex, lining and customized tools as per catalogue number

.

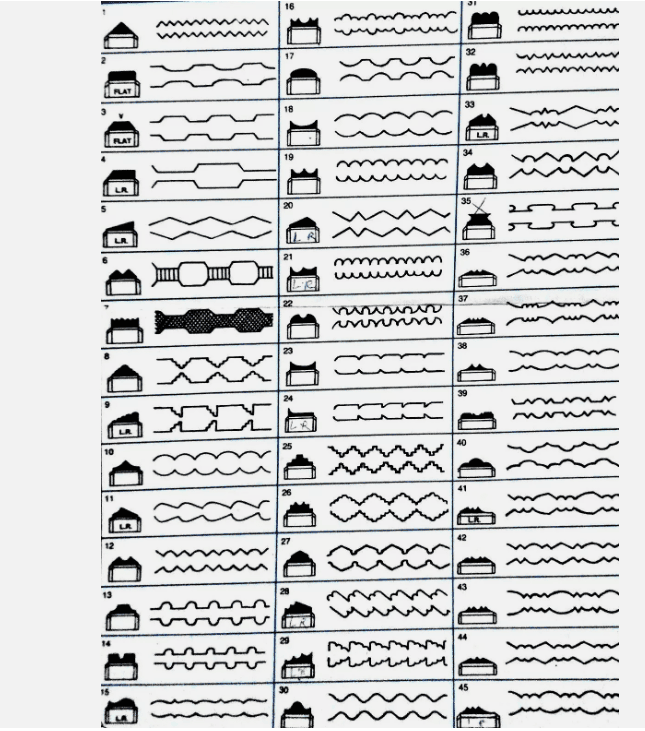

Design Catalogue

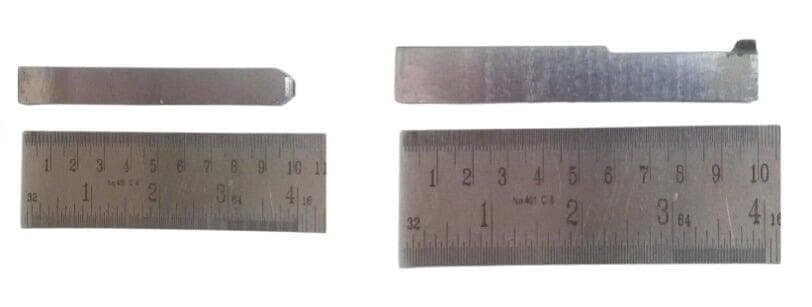

Lathe Tools

Product Name	Features	Shank Size	Diamond size	Degrees
Lathe machine Diamond turning tools for outer cutting and inside turning	Flat tools	10mm X 10mm X100mm	3mm to 8mm	Flat and as per drawing
Lathe machine Tungsten Carbide turning tools for outer cutting and inside turning	Flat tools	10mm X 10mm X100mm	3mm to 8mm	Flat and as per drawing

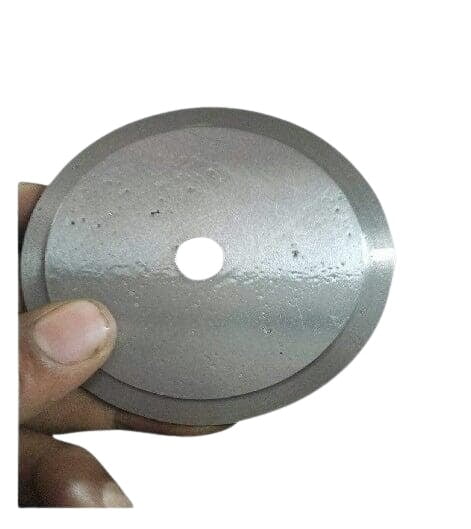

Disc Tool

Product Name	Features	Shank Size	Diamond size	Degrees
Disc Diamond Tools	V Tools	As per requirement	1mm to 3mm	90, 100, 110, 120, 130, 140,150, 160, 170 and flat
Disc Diamond Tools	Flat Tools	As per requirement	1mm to 3mm	Flat
Disc Carbide Tools	V Tools	As per requirement	1mm to 3mm	90, 100, 110, 120, 130, 140,150, 160, 170 and flat
Disc Carbide Tools	Flat Tools	As per requirement	1mm to 3mm	Flat

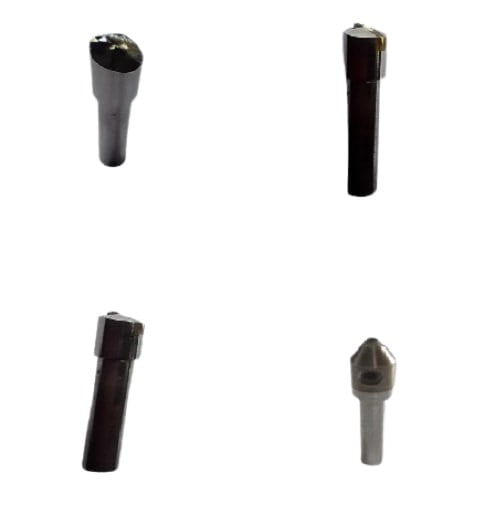

Vertical Tool

Product Name	Features	Shank Size	Diamond size	Degrees
CNC Vertical Diamond Tools Clockwise	V Tools	6mm, 4mm, 3mm	1mm to 3mm	As per drawing
CNC Vertical Diamond Tools Clockwise	Flat Tools	6mm, 4mm, 3mm	1mm to 3mm	As per drawing

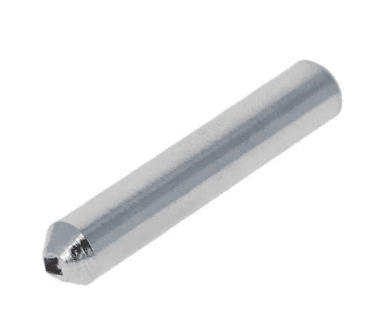

Diamond Dresser

Product Name	Features	Shank Size	Diamond size
Diamond dresser		12mm or as per requirement	1 carat or 2 carat

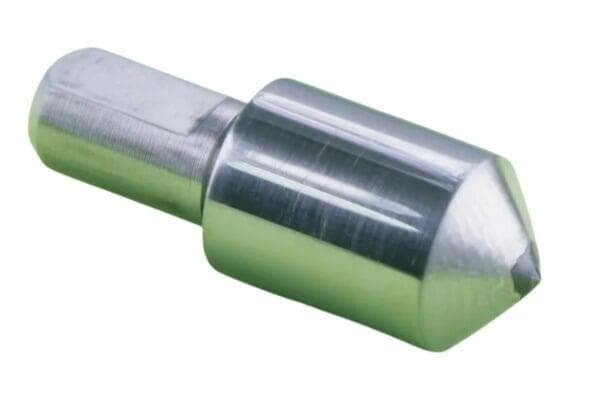

Hardness Indenter

Product Name	Features	Shank Size	Diamond size
Hardness Indenter		6mm or as per requirement	1 carat

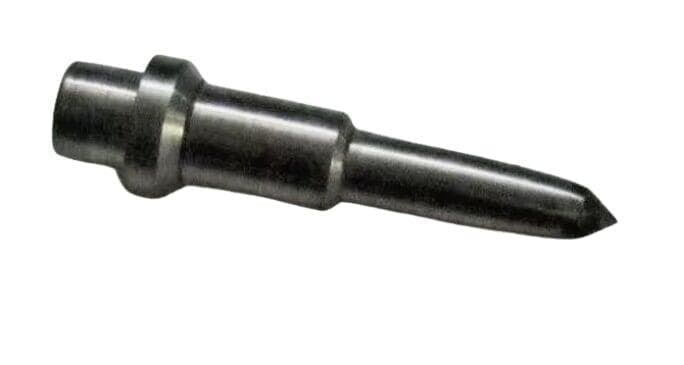

Hammering Pin

Product Name	Features	Shank Size	Diamond size
Hammering Pin			4 facet and 8 facet

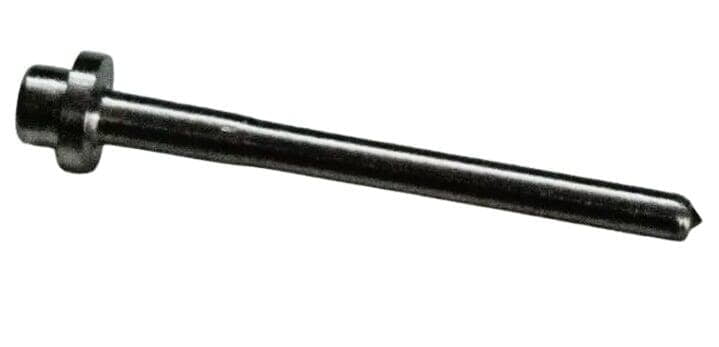

Hammering Pin - Small

Product Name	Features	Shank Size	Diamond size
Hammering Pin			4 facet and 8 facet
